ATI-06RC-02 Hoist Remote Control

ATD-05RC-02 Hoist Remote Control

Availability:In stock
Product Code:483512575

Product Feature:

6 Double step push button: 1 START Button + 1 STOP Button, PLL Circuit: Multi Channel Selection and Interference free, Pairing Remote wireless, no need copier and software, When the power is not enough, the power will be cut off automatically, 200m control distance, Receiver plug connector, easy change spare, no delay works, Ergonomic Transmitter: Compact & Handy, LED Power Indicator on Receiver, Programmable: Computer software Programmable, Anti-Seismic Design.

Overview

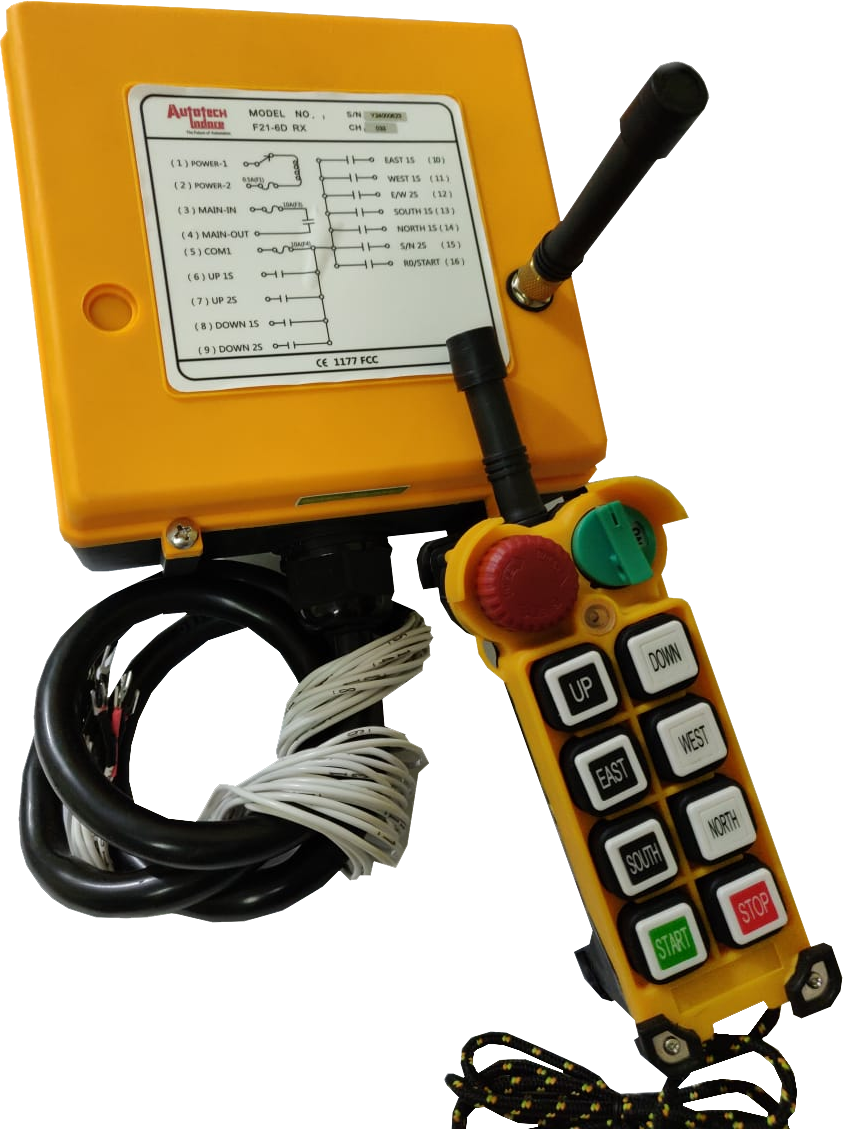

ATI-06RC-02 Hoist Remote Control is a wireless control solution for industrial lifting equipment. It is built to improve operator safety, movement control, and working convenience.

The system is useful where pendant cables are difficult to manage or where operators need better visibility while controlling crane movement.

Each solution is selected according to the machine requirement, operating environment, control philosophy, and future expansion needs of the plant.

The product can be used in new automation projects as well as retrofit applications where reliability, maintainability, and stable operation are important.

AutoTech Indore focuses on practical integration, so the product is planned with suitable control panels, field wiring, communication, protection, and operator requirements.

This approach helps industries improve machine availability, reduce manual dependency, and create a safer and more organized production workflow.

Product Description

The transmitter provides clear push-button control for hoist and crane operations, while the receiver interfaces with the control panel through relay outputs. The design supports dependable wireless communication in industrial areas.

It is suitable for material handling, fabrication shops, production bays, warehouses, and maintenance applications where lifting operations must remain safe and efficient.

During implementation, the product is matched with the correct electrical rating, communication method, input-output requirement, panel layout, and application logic.

The system can be integrated with PLCs, HMIs, drives, sensors, safety circuits, supervisory systems, and other automation devices as required by the machine.

Proper configuration and testing are carried out to ensure smooth operation, accurate response, dependable performance, and easier maintenance for the end user.

The final solution is designed to support continuous industrial use while keeping troubleshooting, replacement, and future modification as simple as possible.

Additional Information

Common specifications include multiple control motions, robust enclosure, coded communication, long operating range, and compatibility with common hoist control voltages.

Installation can be customized according to crane control logic, interlock requirements, emergency stop wiring, and site safety standards.

Before final selection, important details such as load capacity, control voltage, communication protocol, mounting space, cable routing, and site condition should be checked.

Documentation, wiring support, parameter backup, program backup, and commissioning records can be maintained so the system remains serviceable after installation.

AutoTech Indore can also assist with replacement planning, upgrade suggestions, fault diagnosis, spare selection, and operator-level guidance whenever required.

For best results, the product should be installed by trained technical personnel and tested under actual machine operating conditions before regular production use.

Transmitter specification

Dimensions: 156*56*49mm

Weight: 211g

Material: glass-fiber

Protection degree: IP65

Power supply: LR6(AA)1.5V*4 DC6V

Transmit power: <17>

Modulation mode: FSK

Receiver specification

Power supply: AC380V/36V/220V/110V/48V/24V

DimensionS Size: 214*86*79mm

Weight: 673g

Frequency range: 425.5925-446.725MHz

Sensitivity: >105dBm

Basic Technical Specification

Control distance Up to 200m

Control Motions 6

Structure Glass-Fiber

Operation frequency 425.5925-446.725MHz

Certificates CE, FCC, ISO9001:2008

Unique code over 4.3billon unique ID codes.

Working temperature -35c +80c

Output capacity Full sealed relay output with 5 amperes

Transmitting power Less than 10mw

Technical Specifications:

6 Double step push button: 1 START Button + 1 STOP Button

PLL Circuit: Multi Channel Selection and Interference free

Pairing Remote wireless, no need copier and software

When the power is not enough, the power will be cut off automatically

200m control distance

Receiver plug connector, easy change spare, no delay works

Ergonomic Transmitter: Compact & Handy

LED Power Indicator on Receiver

Programmable: Computer software Programmable

Anti-Seismic Design
