ATI-06RC-01 Hoist Remote Control
ATD-05RC-01 Hoist Remote Control
Advanced industrial remote control designed for heavy-duty hoist operations. Reliable performance with enhanced safety.
- ✔ Durable Industrial Design
- ✔ Emergency Stop Button
- ✔ High-Performance Signal Transmission
- ✔ Weather Resistant
Technical Specifications
| Model | ATD-05RC-01 |
|---|---|
| Voltage | 12V / 24V |
| Operating Range | 100 meters |
| Material | Industrial ABS |
Overview
ATI-06RC-01 Hoist Remote Control is an industrial wireless control system for hoists, cranes, and material handling equipment. It helps operators control lifting and movement safely from a convenient distance.
The transmitter and receiver are designed for rugged shop-floor use, stable signal transmission, and reliable operation in demanding industrial environments.
Each solution is selected according to the machine requirement, operating environment, control philosophy, and future expansion needs of the plant.
The product can be used in new automation projects as well as retrofit applications where reliability, maintainability, and stable operation are important.
AutoTech Indore focuses on practical integration, so the product is planned with suitable control panels, field wiring, communication, protection, and operator requirements.
This approach helps industries improve machine availability, reduce manual dependency, and create a safer and more organized production workflow.
Product Description

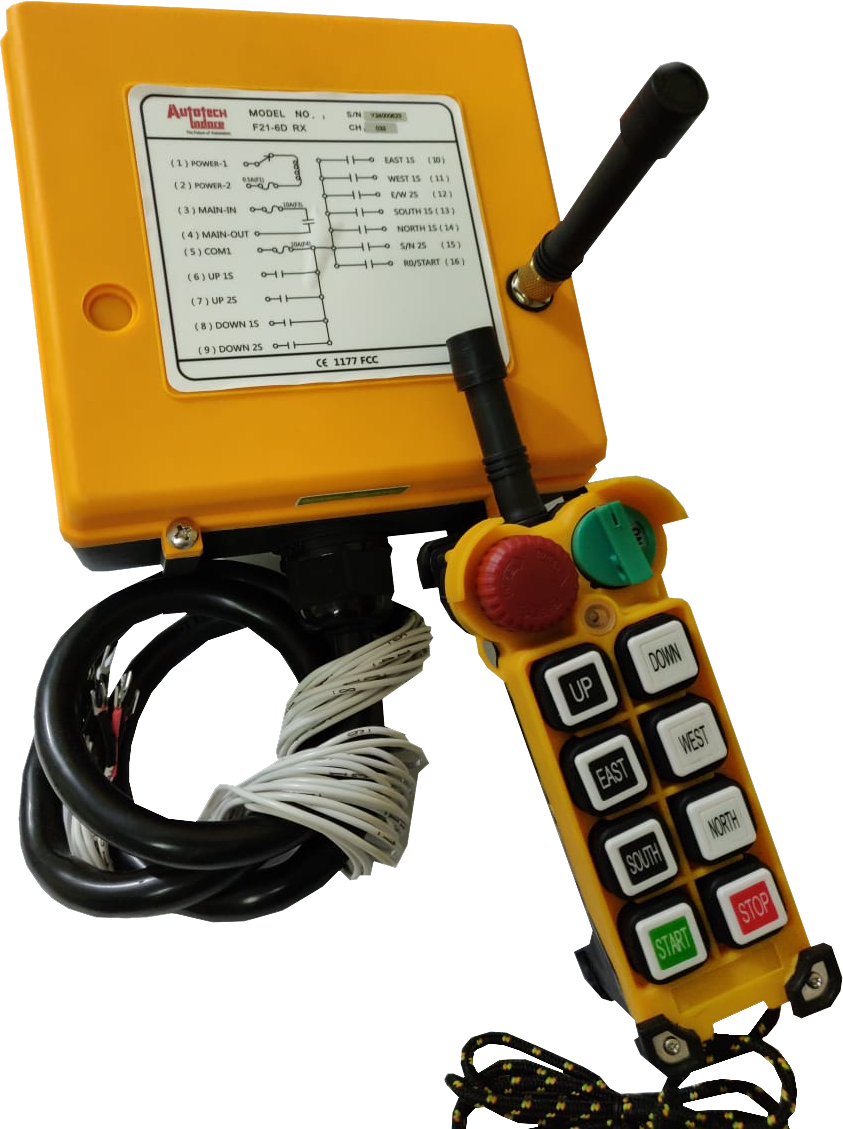

This remote control system supports multi-motion hoist control with a durable handheld transmitter and receiver unit. It reduces operator dependency on pendant cable controls and improves movement flexibility around the machine.
It is suitable for EOT cranes, wire rope hoists, chain hoists, gantry cranes, and other lifting applications where safe wireless operation is required.
During implementation, the product is matched with the correct electrical rating, communication method, input-output requirement, panel layout, and application logic.
The system can be integrated with PLCs, HMIs, drives, sensors, safety circuits, supervisory systems, and other automation devices as required by the machine.
Proper configuration and testing are carried out to ensure smooth operation, accurate response, dependable performance, and easier maintenance for the end user.
The final solution is designed to support continuous industrial use while keeping troubleshooting, replacement, and future modification as simple as possible.
Additional Information
Typical features include IP65 transmitter protection, glass-fiber body construction, long control distance, unique ID code pairing, sealed relay output, and reliable operation across wide working temperatures.
Support includes product selection, receiver wiring, installation, testing, commissioning, and troubleshooting for crane and hoist control applications.
Before final selection, important details such as load capacity, control voltage, communication protocol, mounting space, cable routing, and site condition should be checked.
Documentation, wiring support, parameter backup, program backup, and commissioning records can be maintained so the system remains serviceable after installation.
AutoTech Indore can also assist with replacement planning, upgrade suggestions, fault diagnosis, spare selection, and operator-level guidance whenever required.
For best results, the product should be installed by trained technical personnel and tested under actual machine operating conditions before regular production use.
Transmitter Specification
Dimensions: 156 × 56 × 49 mm
Weight: 211 g
Material: Glass-Fiber
Protection Degree: IP65
Power Supply: LR6 (AA) 1.5V × 4 DC6V
Transmit Power: <17>
Modulation Mode: FSK
Receiver Specification
Power Supply: AC380V / 36V / 220V / 110V / 48V / 24V
Dimensions: 214 × 86 × 79 mm
Weight: 673 g
Frequency Range: 425.925 – 446.725 MHz
Sensitivity: ≥105 dBm
Product Description
This industrial remote control system is engineered for safe and reliable hoist and crane operations. Built using robust materials and advanced wireless technology, it delivers stable signal transmission even in harsh working environments.
Designed for long-term durability, the system enhances operational efficiency while ensuring maximum safety and control accuracy.
Basic Technical Specification
Control Distance: Up to 200 meters
Control Motions: 6
Structure: Glass-Fiber
Operation Frequency: 425.925 – 446.725 MHz
Certificates: CE, FCC, ISO9001:2008
Unique Code: Over 4.3 billion unique ID codes
Working Temperature: -35°C to +80°C
Output Capacity: Full sealed relay output with 5 amperes
Transmitting Power: Less than 10 mW
